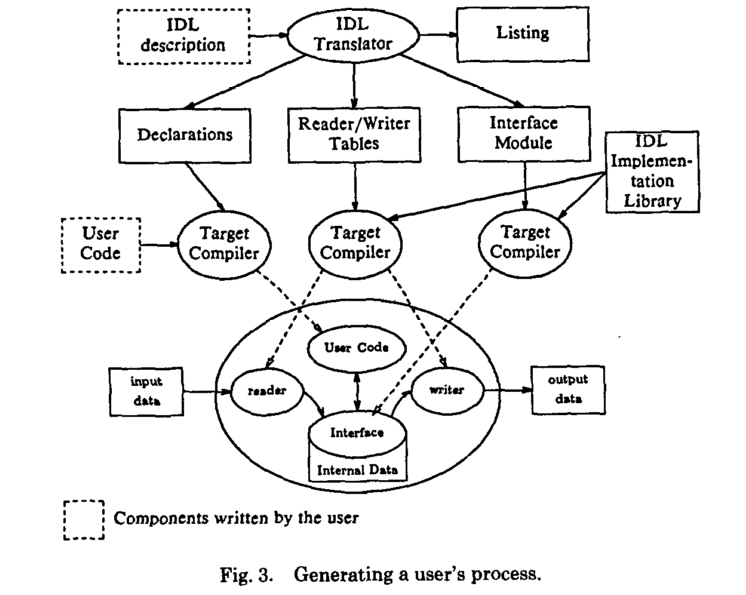

layout: true name: empty --- layout: true --- class: center, middle ## Tech Talk @ ZHAW # Code generation from extensible API descriptions ### Stefan Junker ### Slides - https://steveej.github.io/slides/zhaw-techtalk-0 ??? * Last 3 Years: Laboratory Engineer * 2 years ago until about 1 year ago: involved with CNI and rkt (Container Runtime / Docker alternative) with CoreOS * the last 1.5 years Semesters of Teaching at HTWG: Operating Systems, System Software * 6 Months ago: Finished Masters in Computer Science at University of applied sciences Konstanz * I've been wrapping up my small IT Support business and basically my whole life in Germany * Tomorrow: About to move to Switzerland --- .middle-column[ .footnote[Please state your questions at the end] ## Code generation from extensible API descriptions ### I. Literature & Technology Analysis * Interface Definition Language → Evolution → Evaluation ### II. Example Implementation * Design & Architecture → Notes → Demo ### III. Conclusion * Evaluation → Summary → Outlook ] --- name: literate_and_technology::idl layout: true .left-column[ ## I. Literature & Technology #### 1. Interface Description Language ##### 2. Evolution ##### 3. Evaluation ### II. Example Implementation ### III. Conclusion ] --- template: literate_and_technology::idl .right-column[ #### Interface Description Language: Sharing intermediate representations Author: David Alex Lamb, 1985, Queen’s University ##### Motivation > Improving programmer productivity ##### Method > Integration of tools ##### Use-Case Systems that run large programs, which.. > * communicate via complex data structures. > * might be written in different programming languages and might run on different hardware. > * have internal data representations which must be tailored ] --- template: literate_and_technology::idl .right-column[ #### Components > A **tool** for controlling the exchange of structured data between different components of a large system. > A **notation** for describing collections of programs and the data structures through which they communicate. > A **designer** gives abstract descriptions of data structures, together with representation specifications that specialize the abstract structures for particular programs. > A **translator** that generates readers and writers that map between concrete internal representations and abstract exchange representations. ] -- .right-column[ #### Scope of IDL * .green[Representation and conversion of data] * .red[Session/Connection handling is out-of-scope] ] ??? ### Network in 1988 were not as dangerous and like today ### Skip syntax cause it's confusing --- template: literate_and_technology::idl .right-column[ ### Minimized amount of code written by the user > ![idl-user-process](gfx/idl-user-process-generation.png) ] ??? ### Only two components written by the user --- name: literate_and_technology::evolution layout: true .left-column[ ## I. Literature & Technology ##### 1. Interface Description Language #### 2. Evolution ##### 3. Evaluation ### II. Example Implementation ### III. Conclusion ] --- template: literate_and_technology::evolution .right-column[ ### Relevant Literature Search Keywords included: * interface description language * API code generation * API client stub * API sdk generation .nohead.wide[ - | - - | - **Year** | 2011 | 2012 | 2013 | 2014 | 2016 | 2016 | 2017 **Relevant results** | 1 | 0 | 4 | 1 | 4 | 5 | 8 ] ] -- .right-column[ * .green[The quantitative amount of work related to API description, code generation, and consumption is increasing] * .blue[The specific problem of code generator support for extensible descriptors was not discussed in any of the search results] * The most interesting find is *"On the Security Expressiveness of REST-Based API Definition Languages"*, H.V. Nguyen et al., which analysis how security aspects of APIs can be expressed in various IDls ] --- template: literate_and_technology::evolution .right-column[ ### Relevant Industry Search * Since this is a rather technical issue, main activity seems to stem from the industry * Big and small organizations, as well as individuals are involved in this problem space * Many commercial tools for writing and managing API descriptions * Open Source activity, including Linux Foundation and Cloud Native Computing Foundation ] -- .right-column[ ### Chosen Descriptor of Interest Security scheme declaration * Basic, Key-Based, OAuth, etc. * Fine-grained support desired, e.g. authenticate on level of endpoints, resources, and operations ] --- template: literate_and_technology::evolution .right-column[ .footnote.small[*(Table data based on Wikipedia and respective product release channels)*] .wide.internalborders[ Technology | Features | Author(s) | Year :-: | :-: | :-: | :-: IDL | Method and Structure Description Language, Tooling | Lamb et al. | 1985 CORBA | Description Language, RPC Protocol, Discovery, Authentication | Object Management Group Inc. | 1991 HTTP/1 | Generic Request/Response Network Protocol | T. Berners-Lee, CERN | 1991 HTML | Markup-Language for interactive data represenation | T. Berners-Lee, CERN | 1991 XML | Extensible Markup Language | Textuality and Netscape, Microsoft, Sun Microsystems | 1996 XML Schema | Schema language for describing XML documents | Microsoft, DataChannel | 1998 ] ] ??? * World Wide Web Consortium (W3C) * HTTP / CORBA must have been developed side-by-side * CORBA was solely RPC based --- template: literate_and_technology::evolution .right-column[ .footnote.small[*(Table data based on Wikipedia and respective product release channels)*] .wide.internalborders[ Technology | Features | Author(s) | Year :-: | :-: | :-: | :-: XML-RPC | HTTP-based RPC Protocol with XML as transport representation, XML Schema Language (XML) | UserLand Software, Microsoft | 1998 JSON | Human-readable text-based data representation format | Douglas Crockford | 2000 SOAP | Messaging Protocol using XML and XML SChema | W3C | 2000 WSDL 1 | Web Services Description Language for SOAP based web services | W3C / IBM, Microsoft, Ariba | 2000 REST | Architectural constraints for HTTP web services | Roy Fielding | 2000 Protocol Buffers 1 | Method and Structure Description Language, Data conversion, Tooling | Google | 2001 JSON-RPC 1 | HTTP-based RPC Protocol with JSON as transport representation | Atif Aziz, Jan-Klaas Kollhof | 2005 ] ] ??? * SOAP: Simple Object Access Protocol * JSON: JavaScript Object notation * WSDL: Web Services Description Language --- template: literate_and_technology::evolution .right-column[ .footnote.small[*(Table data based on Wikipedia and respective product release channels)*] .wide.internalborders[ Technology | Features | Author(s) | Year :-: | :-: | :-: | :-: WSDL 2 | WSDL1 Simplified and support for RESTful services | W3C | 2007 Thrift | Method and Structure Description Language, tooling for simple data conversion, RPC protocol | Facebook | 2007 Protocol Buffers 2 | Method and Structure Description Language, Data conversion, Tooling | Google | 2008 WADL | Web Application Description Language for RESTful web services | Sun Microsystems | 2009 OpenAPI 1 (Swagger) | RESTful Method and Structure Description Language, Tooling | Reverb Technologies | 2011 ] ] --- template: literate_and_technology::evolution .right-column[ .footnote.small[*(Table data based on Wikipedia and respective product release channels)*] .wide.internalborders[ Technology | Features | Author(s) | Year :-: | :-: | :-: | :-: RAML | RESTful Method and Structure Description Language, Tooling | MuleSoft, RAML Workgroup | 2013 Cap' N Proto | Method and Structure Description Language, 0-Copy data conversion, Tooling, RPC Protocol | K. Varda (ProtoBuf 2 Author) | 2013 OpenAPI 2 (Swagger) | Added features, especially **Extension Attributes**, Tooling | Reverb Technologies then bought by SmartBear | 2014 HTTP/2 | Improved network efficiency over HTTP/1 | IETF HTTPBis Working Group | 2015 gRPC | RPC protocol for HTTP/2, uses ProtoBuf by default | CNCF (donated by Google) | 2015 ] ] --- template: literate_and_technology::evolution .right-column[ .footnote.small[*(Table data based on Wikipedia and respective product release channels)*] .wide.internalborders[ Technology | Features | Author(s) | Year :-: | :-: | :-: | :-: Protocol Buffers 3 | Method and Structure Description Language, Data conversion, Tooling | Google | 2016 GraphQL | Web Data Query Language Specification, Tooling | Facebook | 2016 OpenAPI 3 | More features, Callbacks, References, etc. | Linux Foundation / OpenAPI Initiative: SmartBear (donators), MuleSoft, Google, Microsoft, etc. | 2017 ] ] --- name: literate_and_technology::evaluation layout: true .left-column[ ## I. Literature & Technology ##### 1. Interface Description Language ##### 2. Evolution #### 3. Evaluation ### II. Example Implementation ### III. Conclusion ] --- template: literate_and_technology::evaluation .right-column[ ### Choosing the Description Language ] -- .right-column[ #### Requirements and Preferences .wide[ Feature | Priority :- | :- Supports descriptor extension with metadata | Required Existing code generator support for Golang Client | Required Existing code generator support for Golang Server | Desired .small[(might be handled by a Proxy)] Open Source Tooling | Desired Native support by at least one public cloud provider (API gateway) | Desired ] ] -- .right-column[ ##### Scope Limiting Decisions * Golang due to personal familiarity and expectation of wide support for Web-Services * Focus on RESTful web service descriptions; RPC functionality evaluation is out of scope ] ??? ### Server Side can be handled via Proxy --- layout: false .center[**Feature Overview**] .wide.internalborders[ Candidate | Extensible Metadata Descriptors | Golang Client Generator | Golang Server Generator | Cloud Provider Support | Comment :-: | :-: | :-: | :-: | :-: gRPC / Protobuf 3 | .yellow[insufficient - only custom/`Any` types] | .green[Official] / | .green[Official] | .green[Google Cloud] | .yellow[[Requires annotations for REST compatibility](https://github.com/googleapis/googleapis/blob/e9f101a23ca58f0d42f5fef52ddbc1ef55257506/google/api/http.proto#L82-L87)] [OpenAPI 2](https://github.com/OAI/OpenAPI-Specification/blob/master/versions/2.0.md) | .green[[Attributes prefixed by `x-`](https://github.com/OAI/OpenAPI-Specification/blob/master/versions/2.0.md#specification-extensions) ] | .green[Official FOSS (swagger-codegen)] / .yellow[Other Freemium/Commercial]| same as client | .green[Google Cloud, AWS, IBM] | [Native support for authentication schemes]() [OpenAPI 3](https://github.com/OAI/OpenAPI-Specification/blob/master/versions/3.0.1.md) | .green[[Attributes prefixed by `x-`](https://github.com/OAI/OpenAPI-Specification/blob/master/versions/3.0.1.md#specification-extensions) ] | .red[[Official FOSS WIP](https://github.com/swagger-api/swagger-codegen/issues/6598)] / .yellow[[FOSS 3rd party impl.](https://github.com/Mermade/openapi-codegen)] | same as client | .red[not found] | [Native support for authentication schemes](https://github.com/OAI/OpenAPI-Specification/blob/master/versions/3.0.1.md#securitySchemeObject) [RAML](https://github.com/raml-org/raml-spec/blob/master/versions/raml-10/raml-10.md) | .green[[Annotations](https://github.com/raml-org/raml-spec/blob/master/versions/raml-10/raml-10.md/#annotations)] | .red[only through conversion to OpenAPI] | *same as client* | *same as client* | [Native support for authentication schemes](https://github.com/raml-org/raml-spec/blob/master/versions/raml-10/raml-10.md/#security-schemes) WSDL 2 | .green[[Countless WS-Standards](https://www.innoq.com/soa/ws-standards/poster/innoQ%20WS-Standards%20Poster%202007-02.pdf)] | .red[only WSDL 1.1] | .red[only WSDL 1.1] | .red[not found] | ] --- template: literate_and_technology::evaluation .right-column[ ### Cloud Provider OpenAPI v2 support and extensions ##### .green[[These extensions](https://cloud.google.com/endpoints/docs/openapi/openapi-extensions) are supported] by the [GCP Extensible Service Proxy](https://cloud.google.com/endpoints/docs/openapi/architecture-overview#extensible_service_proxy) .wide.internalborders[ Attribute | Description :-- | :--: x-google-allow | Can protect configurable endpoints with API Keys x-google-endpoints | Allows configuring DNS-A records for project instances x-google-issuer | Allow verification of securityScheme issues via URI / E-Mail x-google-jwks_uri | Provide URI for the JSON Web Token x-google-audiences | Controls allowed clients provided as DNS records x-google-management: metrics, quota | Configures metric semantics and quota limits ] ##### .green[AWS also supports [API Gateway Extensions to Swagger](https://docs.aws.amazon.com/apigateway/latest/developerguide/api-gateway-swagger-extensions.html)] ] --- template: literate_and_technology::evaluation .right-column[ #### Available Tools Converters, Doc Viewers/Consoles, Editors, Generators, Server Implementations, Parsers/Models/Validators, etc. #### Prototyping with OpenAPI v3.0.1 Resources for finding v3 compatible tooling: * https://github.com/Mermade/awesome-openapi3 * http://openapi.tools/ ##### .red[Unsuccessful] * I could not find a working tool for getting up and running with a simple server and client * Downconverting to v2 is lossy as well #### Prototyping with OpenAPI v2 .big.green[Successful] * [**go-swagger**](https://github.com/go-swagger/go-swagger) seems to be an established code generation toolkit and will be used for the example implementation ] --- name: example-impl::architecture layout: true .left-column[ ### I. Literature & Technology ## II. Example Implementation #### 1. Design & Architecture ##### 2. Notes ##### 3. Demo ##### 4. Evaluation ### III. Conclusion ] --- template: example-impl::architecture .right-column[ ### Secure Echo Service * Require authentication on the `/echo` resource for the `POST` method; * Use *API_KEY* in a Pre-Shared-Key fashion configured via the environment * Specification in OpenAPI v2.0 format * *go-swagger* toolchain for generating Server & Client code ### Test Setup * Package and run server app with Docker * Test the endpoint using `curl` and the generated client ### Key Authentication via Header Example Header ``` POST /echo HTTP/1.1 (...) *X-API-Key: pre-shared-secret (...) ``` ] --- name: example-impl::notes layout: true .left-column[ ### I. Literature & Technology ## II. Example Implementation ##### 1. Design & Architecture #### 2. Notes ##### 3. Demo ##### 4. Evaluation ### III. Conclusion ] --- template: example-impl::architecture .right-column[ ### Secure Echo Service - Specification ```yml swagger: '2.0' (...) /echo: post: summary: POST a body and receive it back consumes: - application/json produces: - application/json operationId: postEcho responses: '201': description: POST echo schema: $ref: '#/definitions/Message' '401': description: not authorized schema: $ref: '#/definitions/Message' examples: application/json: not authorized (...) security: - apiKey: [] (...) ``` ] --- template: example-impl::architecture .right-column[ ### Secure Echo Service - Specification ```yml securityDefinitions: apiKey: type: apiKey in: header name: X-API-Key definitions: Message: properties: msg: type: string Error: type: object required: - code - message properties: code: type: integer format: int32 message: type: string x-components: {} ``` ] --- template: example-impl::notes .right-column[ ### Server Implementation #### Code Generation ```bash $ go-swagger generate server -f ../defs/2.0_secure-echo.yaml \ -A secure-echo-server -t src/secure-echo-server -P string ``` #### Authentication Implementation ```go < return nil, errors.NotImplemented("api key auth (apiKey) X-API-Key from header param [X-API-Key] has not yet been implemented") --- > if token == os.Getenv("API_KEY") { > return &token, nil > } > > return nil, errors.New(401, "wrong auth key") ``` #### POST /echo Implementation ```go < return middleware.NotImplemented("operation .PostEcho has not yet been implemented") --- > return operations.NewPostEchoCreated().WithPayload(params.Body) ``` ] ??? * The key is just a string --- template: example-impl::notes .right-column[ ### Client Implementation #### Code Generation ```bash $ go-swagger generate client -f ../defs/2.0_secure-echo.yaml \ -A secure-echo-client -t src/secure-echo-client -P string ``` #### Main ```go func main() { params := operations. NewPostEchoParamsWithTimeout(1 * time.Second). WithBody(&models.Message{Msg: os.Getenv("API_MSG")}) client := apiclient. New(httptransport.New(os.Getenv("API_HOST"), "", nil), strfmt.Default) apiKeyHeaderAuth := httptransport. APIKeyAuth("X-API-Key", "header", os.Getenv("API_KEY")) resp, err := client.Operations.PostEcho(params, apiKeyHeaderAuth) if err != nil { log.Fatal(err) } log.Printf("%#v\n", resp.Payload.Msg) } ``` ] --- name: example-impl::demo layout: true .left-column[ ### I. Literature & Technology ## II. Example Implementation ##### 1. Design & Architecture ##### 2. Notes #### 3. Demo ##### 4. Evaluation ### III. Conclusion ] --- template: example-impl::demo .right-column[ ##### Running the Server with Docker ```bash $ docker run --rm --publish 127.0.0.1:8888:8080 --env API_KEY=techtalkdemosecret zhaw-tech-talk-demo:latest 2018/02/27 10:13:46 Serving secure echo server at http://[::]:8080 ``` ##### Verifying an invalid key with curl ```bash $ curl -X POST --header 'Content-Type: application/json' -H 'X-API-Key: techtalkdemosecretWRONG' -d '{ "msg": "echo me" }' 'http://127.0.0.1:8888/echo' {"code":401,"message":"wrong auth key"}% ``` ##### Verifying a correct key with curl ```bash $ curl -X POST --header 'Content-Type: application/json' -H 'X-API-Key: techtalkdemosecret' -d '{ "msg": "echo me" }' 'http://127.0.0.1:8888/echo' {"msg":"echo me"} ``` ##### Verifying a correct key with the Client ```bash $ export API_HOST="127.0.0.1:8888"; export API_KEY="techtalkdemosecret" $ export API_MSG=Boomerang; $ go run gopath/src/secure-echo-client/cmd/secure-echo-client-client/main.go 2018/02/27 11:18:09 "Boomerang" ``` ] --- name: example-impl::evaluation layout: true .left-column[ ### I. Literature & Technology ## II. Example Implementation ##### 1. Design & Architecture ##### 2. Notes ##### 3. Demo #### 4. Evaluation ### III. Conclusion ] --- template: example-impl::evaluation .right-column[ ### Google Platform Cloud Did Not Like The App ``` env: flex runtime: custom manual_scaling: instances: 1 network: forwarded_ports: - 8080/tcp env_variables: API_KEY: 'techtalkdemosecret' ``` ##### Failed *Updating service* after successfully pushing the image ```bash $ gcloud app deploy --stop-previous-version --promote (...) latest: digest: sha256:fa56f4a2f69d10f0a7f153d1d362e0f0f4031936e0253b02cdf2cdc40a427623 size: 2205 DONE ---------------------------------------------------------------------------------------------- Updating service [default]...failed. ERROR: (gcloud.app.deploy) Error Response: [13] An internal error occurred during deployment. ``` ] --- name: example-impl::conclusion::summary layout: true .left-column[ ### I. Literature & Technology ### II. Example Implementation ## III. Conclusion #### 1. Summary ##### 2. Outlook ] --- template: example-impl::conclusion::summary .right-column[ #### State of OpenAPI ##### Golang Code Generation for Secured Server/Client * .red[v3 has no production-level support by any known tool today] * .yellow[v2 client code generation still requires manual configuration for authentication] * .green[v2 server code generation still requires manual configuration for authentication] ] -- .right-column[ ##### API Features * .green[Covers RESTful APIs] * .red[No modeling support for combining REST/RPC model] * .green[Wide feature support and easy to extend with custom attributes] * .green[Efficient API design through reusable component definitions] ] --- template: example-impl::conclusion::summary .right-column[ #### State of OpenAPI ##### Politics and Community * .green[Independently governed and protected by the Linux Foundation] * .green[Numerous industry companies are on board] ] -- .right-column[ #### .yellow[Results Depend on Tooling and Specific Target Language Support] * The most complex part is translating the specification document to source code. Involved problems and their states * .green[Parsing the Specification Attributes] * .yellow[Mapping spec attributes to templating variables] * .red[Developing smart templates for accurately mapping specification features] ] --- name: example-impl::conclusion::outlook layout: true .left-column[ ### I. Literature & Technology ### II. Example Implementation ## III. Conclusion ##### 1. Summary #### 2. Outlook ] --- template: example-impl::conclusion::outlook .right-column[ #### OpenAPI Specific Short-Term Goals * Introduce template support for common languages in v3 Tooling * Achieve SDK generation/updates without manual intervention by improving support on existing features. Examples: * Authentication schemes * Error handling * Client-Side Load Balancing based on Servers in Specification Document * Callback handling ] -- .right-column[ #### OpenAPI Specific - Medium-Term Goals * Provider independent API gateway support for Combined Specification ] -- .right-column[ #### Generic Web-Services - Long-Term Goals * Form a connection between RPC protocol IDLs and REST IDLs ] --- name: questions layout: false class: middle, center # Thank you! --- template: literate_and_technology::idl exclude: false count: false .right-column[ ##### Structures are based on directed, labelled graphs *simple* IDL structure ```idl Structure simple Root exp Is tree ::= leaf | inner; inner => op: operator, sons: Seq Of tree; leaf => name: String; operator ::= plus | minus | times | divide; plus =>, minus =>; times =>, divide =>; End ``` Adding a representation to the *simple* structure ```idl Structure rep1 Refines simple Is For leaf.name Use fixedString 20; For operator Use enumeration; End Structure rep2 Refines simple Is For leaf.name Use index; End ``` ] --- template: literate_and_technology::evolution count: false .right-column[ ### CORBA-IDL Example ```idl module BankExample { typedef float MoneyType; struct NameType { string first; string last; }; interface BankAccount { MoneyType balance(); MoneyType deposit(in MoneyType amount); MoneyType withdraw(in MoneyType amount); }; interface CheckingAccount : BankAccount { exception BadCheck { MoneyType fee; }; MoneyType writeCheck( in MoneyType amount) raises (BadCheck); }; interface BankManager { CheckingAccount openAccount(in NameType name, in MoneyType deposit, out MoneyType balance); }; }; ``` ]
